Technical Specifications: Scorpio Speaker system
| Item |
Tower |
Satellite |
Center |
Subwoofer |
| Speaker Size |
Tweeter: 1" |
Tweeter: 1" |
Tweeter: 1" |
--- |
| Midrange: --- |
--- |
--- |
--- |
| Woofer: 3"x3pcs |
Woofer:3"x2Pcs |
Woofer:3"x2Pcs |
Woofer:8"x1Pcs |
| Magnetic shielded |
YES |
YES |
YES |
NO |
| Frequency range |
100~18KHz |
100~18KHz |
100~18KHz |
40~160Hz |
| Impedance |
4 Ohm |
4 Ohm |
4 Ohm |
4 Ohm |
| Sensitivity |
85dB |
85dB |
85dB |
--- |
| Power handling |
60W |
40W |
40W |
80W
|
| Cabinet |
Painting Metallic
Black/Silver |
Painting Metallic
Black/Silver |
Painting Metallic
Black/Silver |
Painting Metallic
Black/Silver |
| Dimension (H×W×D) |
47.25x4.25x5.25in |
14.25x4.25x6.5in |
4.25x14.25x6.5in |
15x9.75x15in |
| Weight |
15Lb |
6Lb |
3Lb |
25Lb |

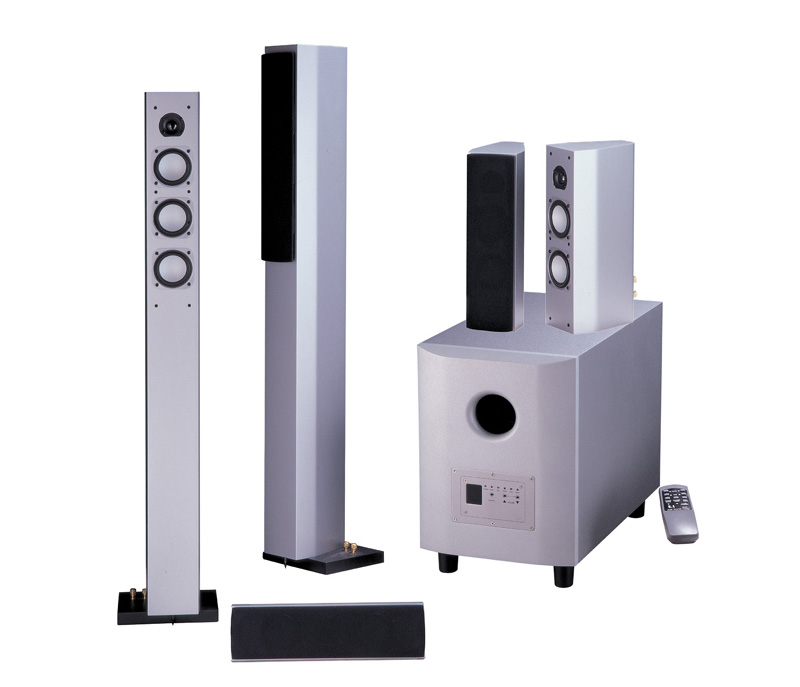

The Scorpio Series
Model L-1000, beautiful modern cabinet design, build-in amplifiers subwoofer allow this system maximum flexibility.
The system shown is our 3" inverted aluminum cone woofer with 1" soft dome tweeter. Painted in metallic silver (also available in high gloss black). Tall elegant towers, a sleek center channel cabinet and narrow profile satellites to offer maximum flexibility for performance and price.
